Flex G Series

Flex G30

Modular Gravity Media Filtration Systems

The Flex G line of FlexFiltration features gravity media as the primary filtration method. This cost-effective system composed of pre-engineered modules ensures fast, easy, and flexible filtration configurations. A variety of options make this system configurable for practically any application. It efficiently removes fine chips and grinding sludge to achieve coolant clarity down to 10 microns. Features such as low media detection, no media alarm, and auto media advance ensure easy maintenance.

Multiple disposable media options handle either water-based or oil-based coolant. Gravity media filtration systems are especially well suited for challenging applications involving materials ranging from cast iron, steel and aluminum to composites and plastics.

Flex G comes in standard tank sizes based on volume and components required. Other sizes or low-profile can also be designed upon request.

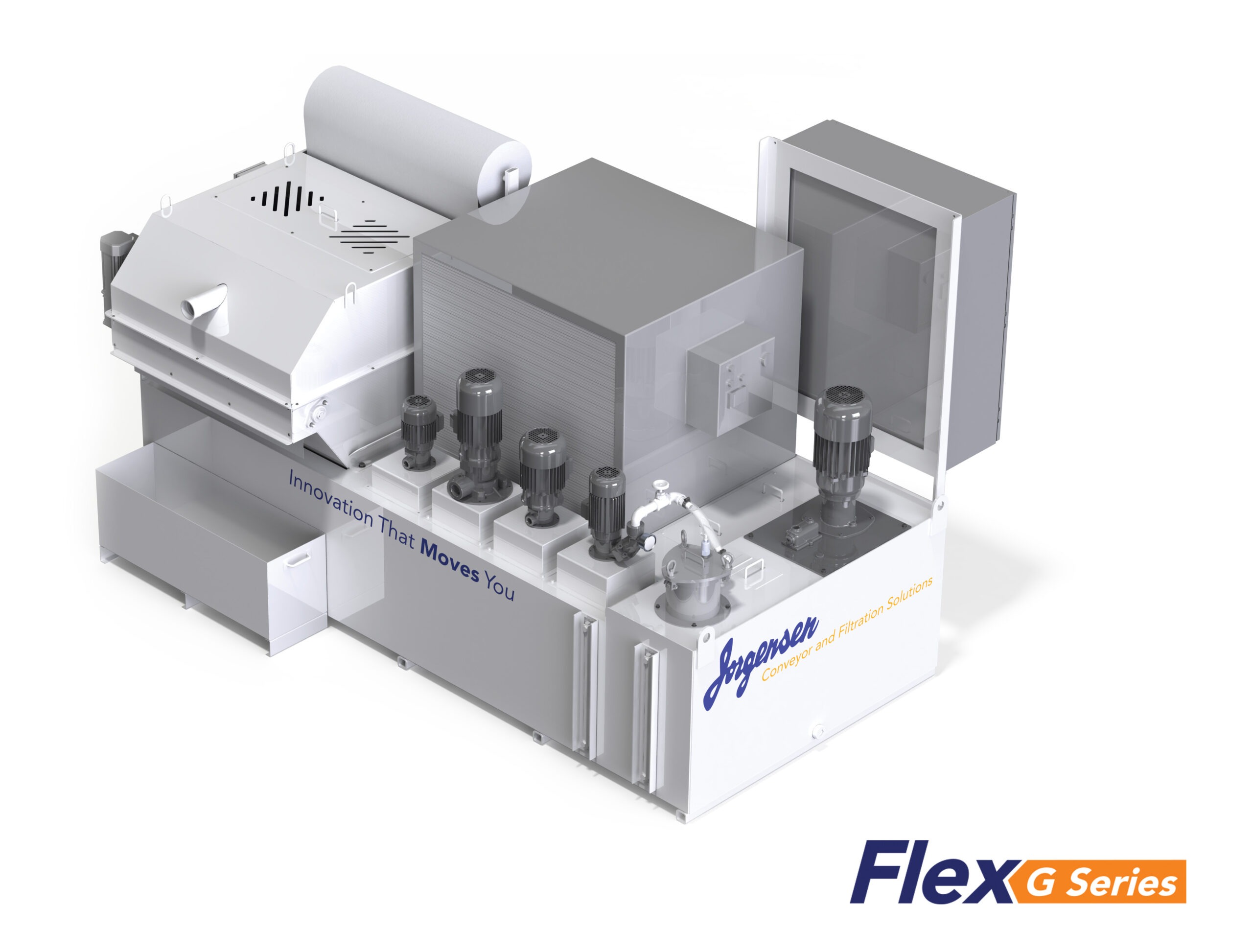

Pictured Above: Flex G30

  • Fabricated with modular filter and tank components to meet your changing filtration requirements
  • Standard Automatic Media Advance
  • “Low Media Roll” detection switch to provide pre-warning to machine
  • “No media” alarm sensor to provide fault condition to machine
  • Fine filtration to 10 microns or less
  • Positive seal design used to eliminate fines migration
  • Deep filter cakes for efficient cost saving coolant use
  • Can be mounted to existing coolant tanks
  • Low profile tank for grinding applications
  • Media Tray included

Looking for a custom gravity filtration system or not quite sure which option is best for you? Our industry experts are here to help. Give us a call at (262) 242-3089 or Contact Us

  • Uses a variety of different disposable cloth media, which are selected based on the specific application
  • Filter Sizes 25 GPM, 50 GPM, 75 GPM & 100 GPM
  • Standard Tank Sizes* (Clean & Ultra-Clean Version)

*Tank size is based on volume request and components required – other sizes can be designed upon request.

  • PermaClean Maintenance free coolant tank
  • Will-Fill automated coolant monitoring
  • FlexForce High Pressure coolant system
  • Tramp oil skimmers
  • Coolant chillers/heat exchangers
  • Electronic sensors – liquid level monitoring, coolant temperature, etc.
  • Full stainless-steel option available
  • Pumps/plumbing/coolant transfer
  • Control or interface with pumps and other auxiliary equipment
  • Coolant Filtration
  • Central Systems
  • Oil Filtration
  • Water Filtration
  • Fluid Filtration
  • Machine Tool Coolant Filtration
  • CNC Coolant Filtration
