Double Chip Wringers

Large chip wringer

Double Centrifuge for Total Chip Processing

Continuous flow centrifuges provide optimal extraction of residual coolants and oils from chips using centrifugal force.

Incorporating a centrifuge into your chip processing system aids in the reuse and recycling of scrap metal, coolant, and other cutting fluids. All Jorgensen and SFH centrifuges are designed for continuous use and low maintenance. Automatic cleaning, via a compressed air system, to eliminate blockages in the bowl slots is optional to further reduce maintenance.

Double centrifuges provide moisture reduction and coolant/oil reclamation in a variety of difficult applications including aluminum, magnesium, copper, brass, steel and other metals. Additionally, this product can be combined with Jorgensen and SFH’s other chip processing equipment to provide a complete chip handling system.

Jorgensen offers two double wringer options. The ESD500 handles up to 660 lb/hr., and the ESD1000 handles up to 1653 lb/hr. Both models dry chips to a moisture content of 2% or less.

  • Fabricated with a treated steel bowl and machined slots to meet the ever-changing chip handling requirements
  • Designed for continuous use
    Compact system
  • Low operating costs and low maintenance
    Reuse and recycling of cutting fluid/oils
    Prepares chips for further processing
  • Moisture content 6% or less

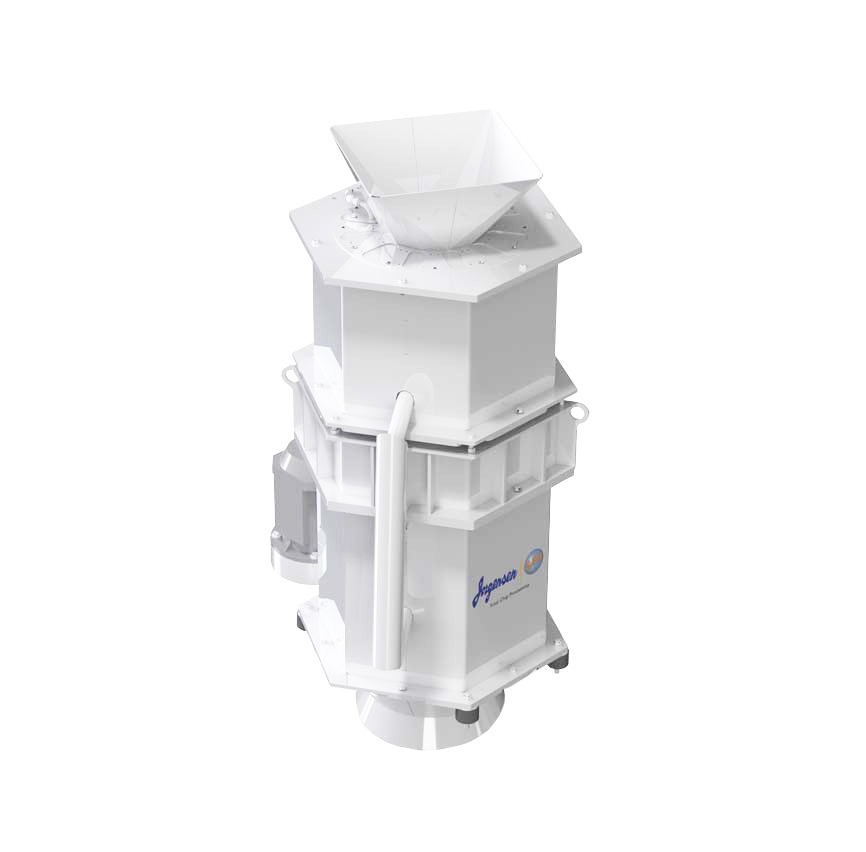

ESD500 – Double centrifuging for even drier chips

  • Treated steel bowl with machined slots
  • Throughput approximately 330 lb/h aluminum and 660 lb/h steel
  • Motor 2.2 kW, 1500 rpm
  • Belt drive
  • Steel housing
  • Painted exterior
  • Slots cleaned by blowing compressed air
  • 10 bar air compressor
  • Machine dimensions
    H = 1580 m
    W = 900 mm
  • Weight: 1322 lb
  • Residual moisture < 2%

ESD1000 – Double centrifuging for even drier chips.

  • Treated steel bowl with machined slots Throughput approximately 772 lb/h aluminum and 1653 lb/h steel
  •  Motor 4 kW, 1500 rpm
  • Belt drive
  • Steel housing
  • Painted exterior
  • Slots cleaned by blowing compressed air
  • 10 bar air compressor
  • Machine dimensions
    H = 1940 m
    W = 1145 mm
  • Weight: 2094 lb
  • Residual moisture < 2%

Machine throughput rates will depend on the shape and density of the chips and the amount of moisture they contain.

  • Automatic cleaning, via a compressed air system to eliminate blockages in the bowl slots
  • Single wringer also available

Double Wringer*
ESD500 – Moisture Content 2% or less, 330 to 660 lb/h
ESD1000 – Moisture Content 2% or less, 772 to 1653 lb/h
*The wringer size is based on volume request, moisture content needed, and
material used
