Single and Dual Stage Filterveyor® – Permanent Media Filter

Filterveyor - conveyor with filtration

Chip Conveyor with Drum Filter

Single and dual stage Filterveyors effectively combine advanced chip removal and coolant filtration down to 50 microns nominal.

In the first stage of filtration, a hinged steel belt conveyor collects and discharges the mid to larger chips from dirty coolant. In the second stage, permanent filter media traps the fine chips and swarf inside a rotating drum. Fine chips and swarf from dirty coolant are captured on the inside of a rotating drum while an internal spray bar continuously cleans the drum filter. Then, drag flight conveyor cleats collect these chips and carry them out the discharge end. Clean coolant flows from the drum into a tank for reuse or recycling. Single stage Filterveyors work in a similar manner, but do not have the initial hinged steel belt.

These drum filter conveyors excel in applications handling very high chip volumes and are capable of providing filtration to multiple machines. The self-cleaning drum filter allows for maintenance free operation, extended coolant life and less downtime. In addition, no consumables in the system helps users meet environmental standards and cost savings.

This filter conveyor efficiently manages multiple material types including fines, broken chips, bushy or stringy chips. Highly effective in applications managing steel, aluminum, brass and many other materials.

  • Engineered to meet specifications for length and width to ensure a proper fit
  • Self-cleaning drum via internal spray bar continuously cleans the filter media – no consumables
  • Single Stage Filterveyor® design incorporates one drive and is used to filter broken and fine chips or swarf sludge. (Uses a Drag Flight conveyor)
  • Dual Stage Filterveyor® design features dual drives and is used to filter bushy, stringy and high chip loads. (Uses a primary metal belt and a secondary Drag Flight conveyor)
  • Filterveyors can handle very high chip volumes
  • Drop in design for existing coolant tanks/systems
  • Can provide efficient filtration of fine chips to 50 micron nominal
  • Capable of providing filtration to multiple machines
  • Single Stage Filterveyor®  design incorporates one drive and is used to filter broken and fine chips or swarf sludge.  (Uses a Drag Flight conveyor)
  • Dual Stage Filterveyor® design features dual drives and is used to filter bushy, stringy and high chip loads.  (Uses a primary metal belt and a secondary Drag Flight  conveyor)
  • 1.5” and 2.5” pitch sizes available, engineered to meet specifications for length and width to insure a proper fit
  • No disposable media to be replaced – environmentally friendly
  • Self-cleaning drum filter system for maintenance free operation, extended coolant life and less downtime
  • Capable of providing filtration to multiple machines

Customer Case Story

Two versions are available: Single Stage Filterveyor® and Dual Stage Filterveyor® and customizable options are available for each.

  • FlexForce – high pressure coolant system
  • PermaClean – maintenance free coolant tank
  • Pumps / plumbing / coolant transfer
  • Secondary Filtration
  • Tramp oil skimmers
  • Coolant Chillers / heat exchangers
  • Complete electricals / controls

Read about Trane saving time and money using our Filterveyor® In their production

Dual Sta





Coolant Filtration for Machine Tool

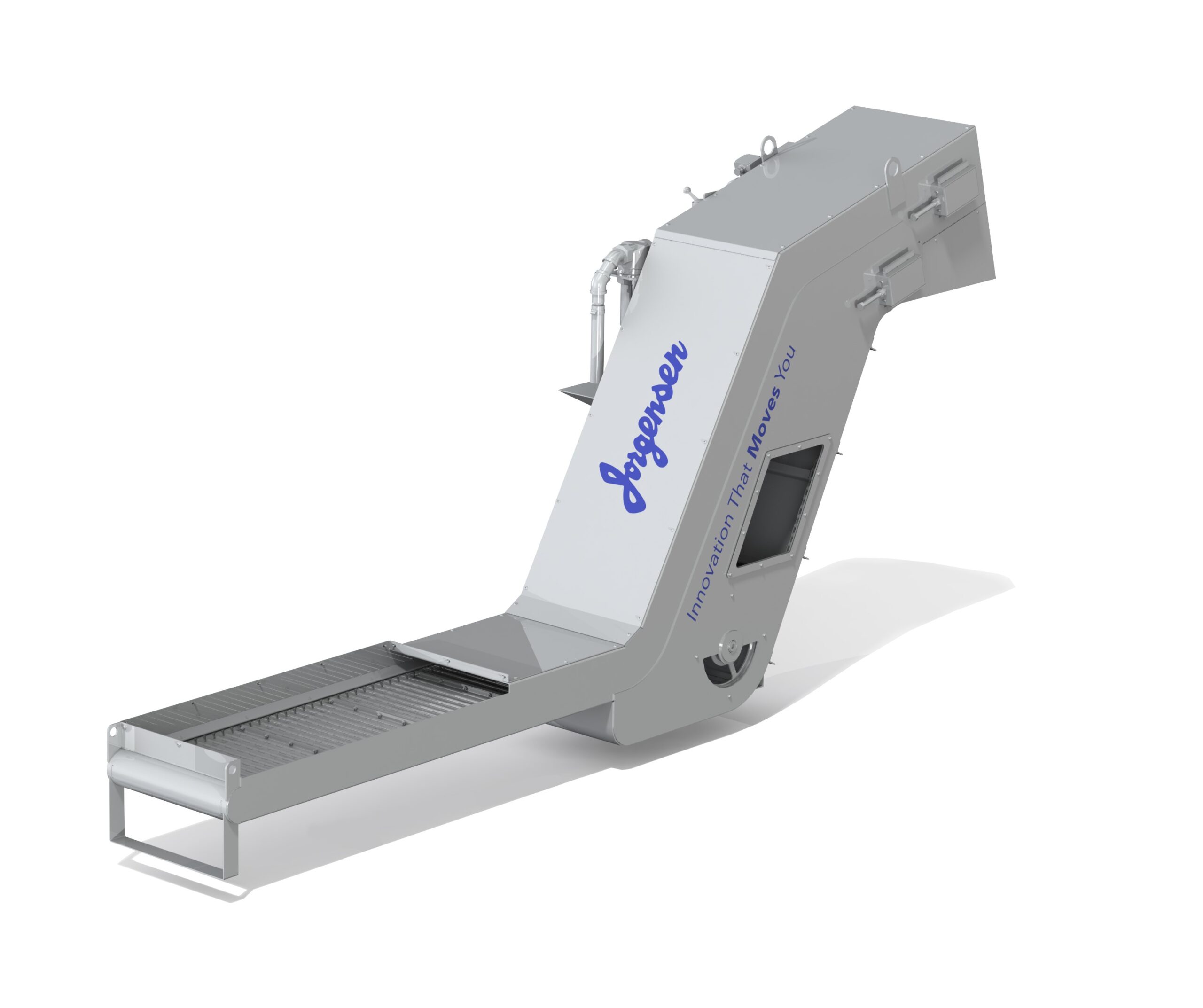

Dual Stage Filterveyor®

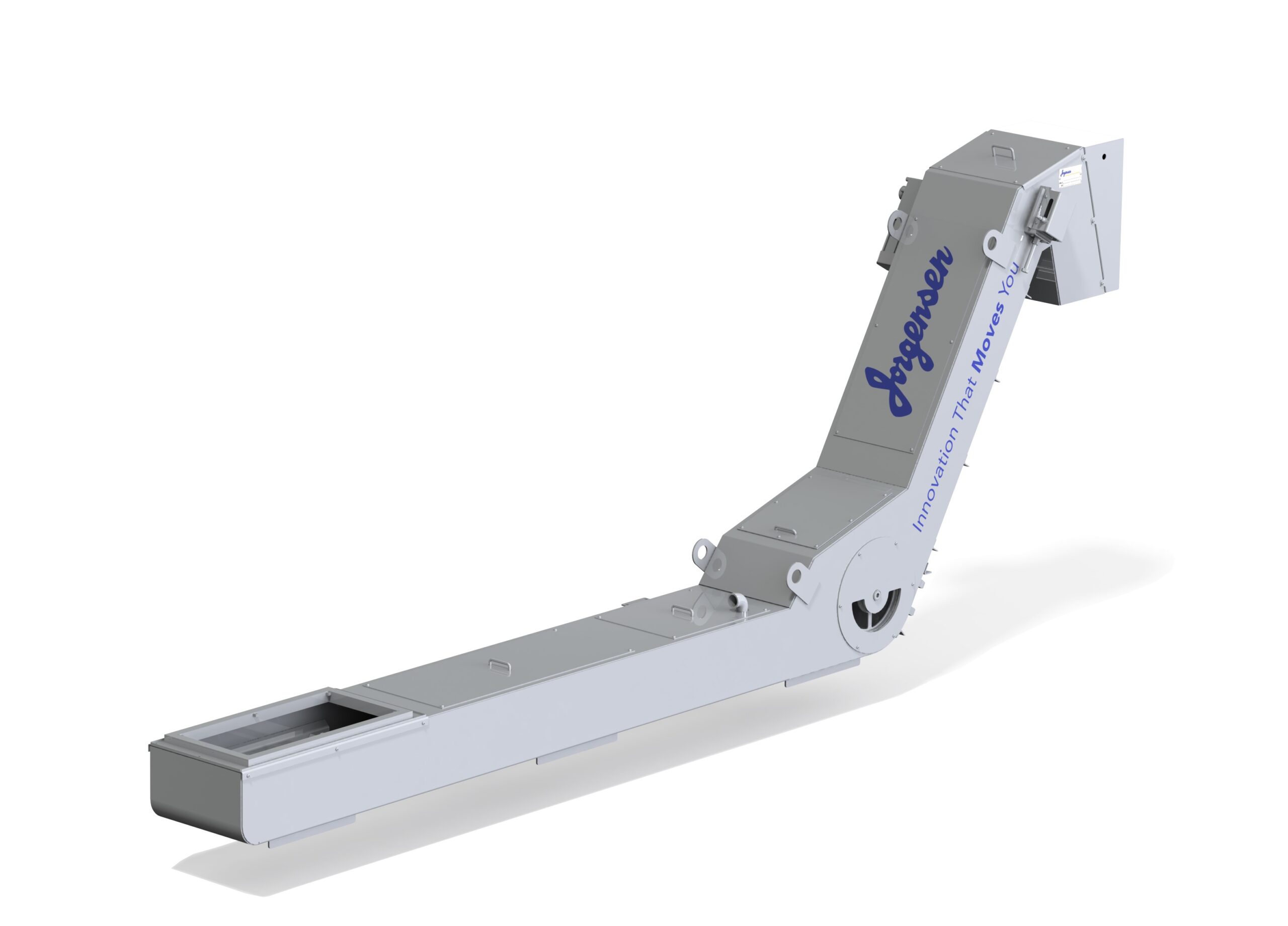

Single Stage Filterveyor®







  • Machine Tool Coolant Filtration
  • Machine Tool Chip Removal
  • Machine tool Central System chip removal and coolant filtration
Filterveyor Application

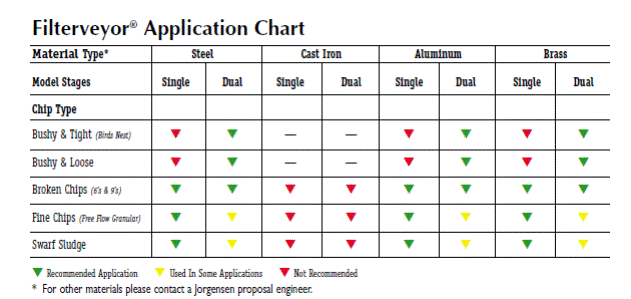

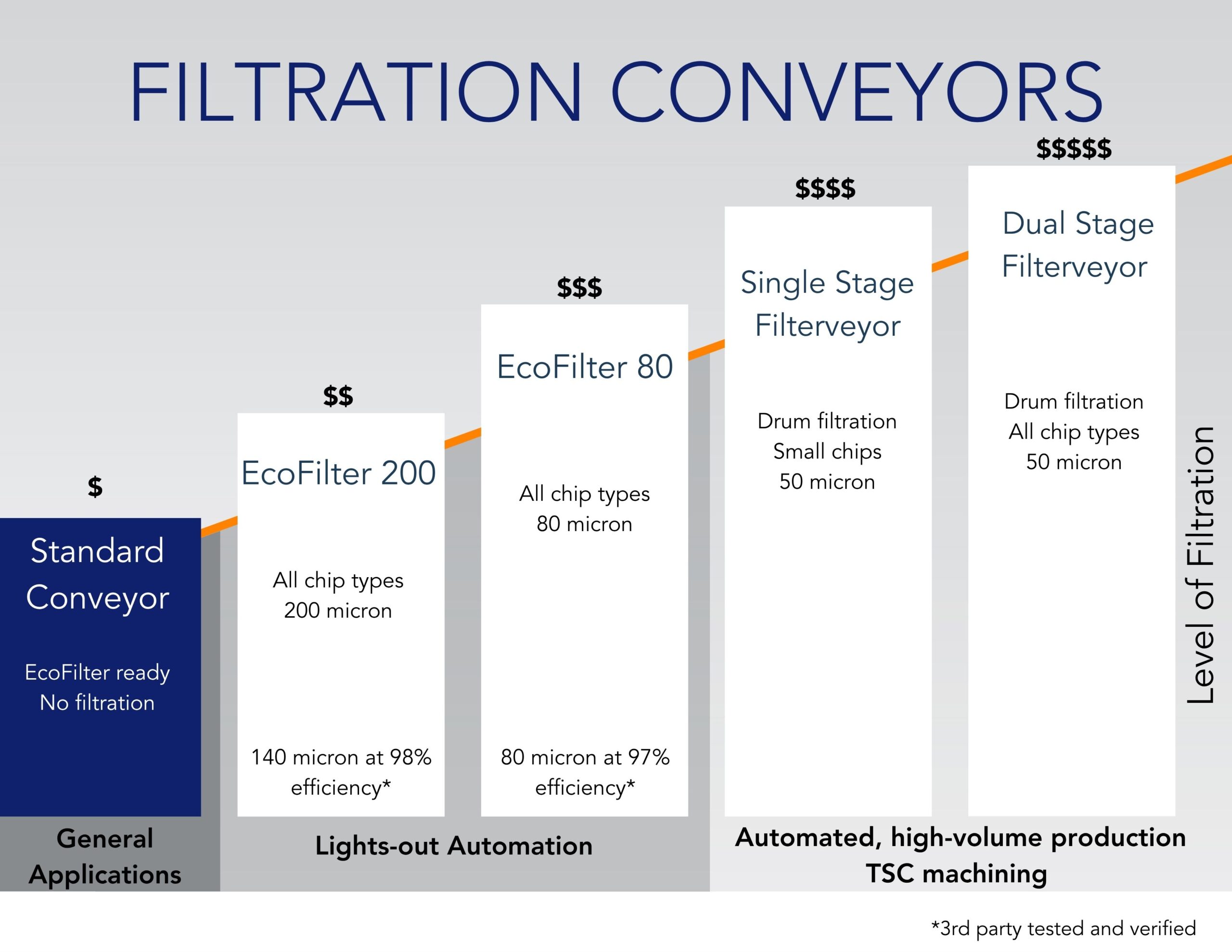

Filterveyor Application Chart
