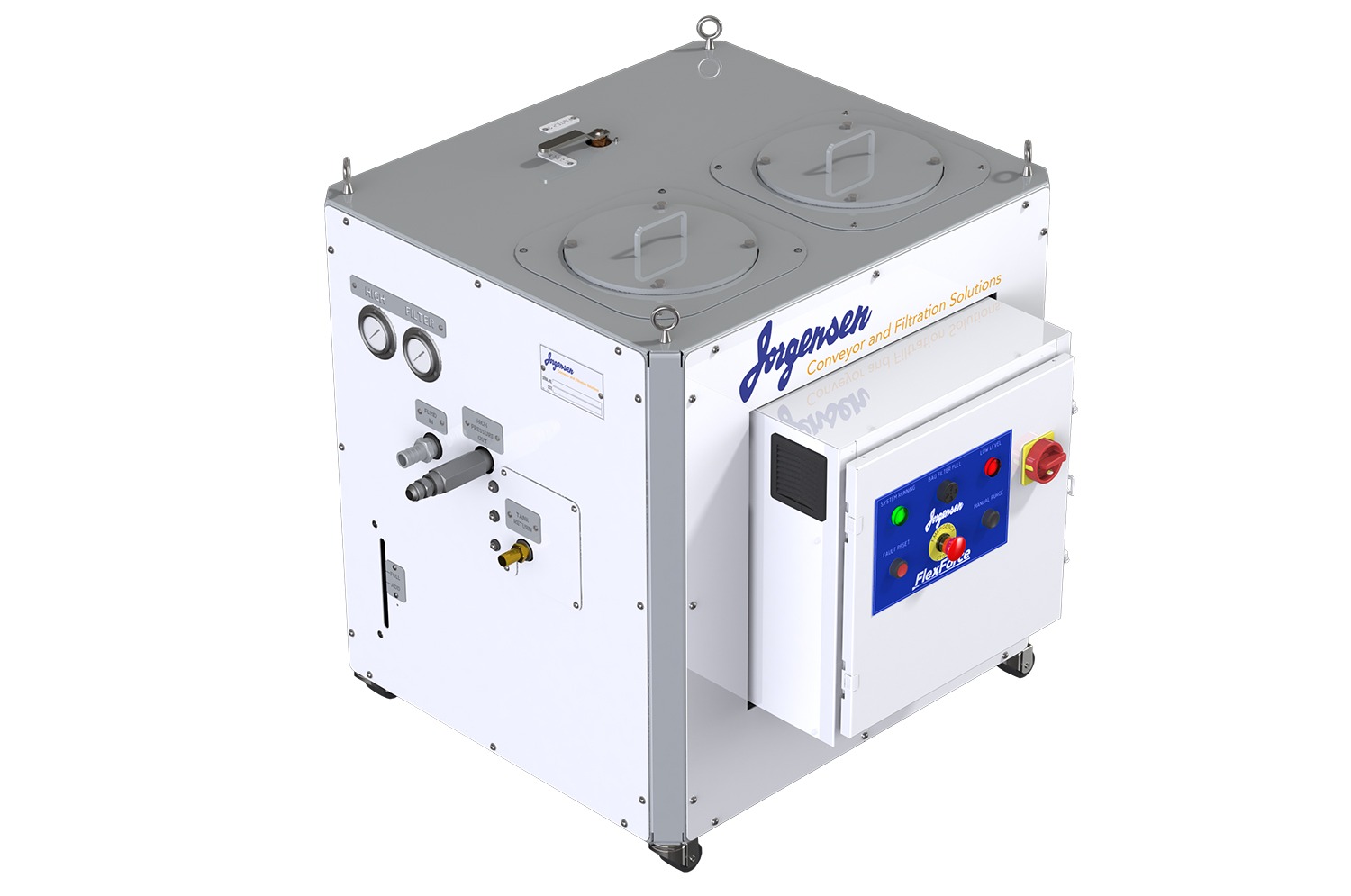

FlexForce
High Pressure For Through-Spindle Coolant Machining
The FlexForce high-pressure coolant system outperforms ordinary flood systems for machining difficult materials such as stainless steel, Inconel, or titanium. This system combines premium-level offerings to provide steady pressure for clean cuts.
FkexForce is available in 500 or 1,000 PSI fixed or variable flow models, with single or dual bag filters down to 5 micron.
Temperature Stability For Precision Cutting
High pressure through-spindle coolant (TSC) boosts productivity, improves part accuracy, and delivers superior surface finishes. By stabilizing coolant temperature, FlexForce enables faster, more consistent, and more precise cuts. FlexForce works with through spindle coolant (TSC) systems that deliver coolant directly to the cutting zone. This breaks through the heat-generated vapor barrier, preventing surface deformities, and extending tool life.
Additional benefits include improved lubrication, heat dissipation, speeds and feeds, and chip control. Check with your machine tool provider or contact us to check if your machine is compatible with high pressure coolant.
Built-In Intelligence and System Protection
Advanced pressure regulation and multiple electronic sensors protect against system damage to allow reliable, lights-out operation. Bag filter sensors with light indication, reservoir level monitors, and overflow detection ensure continuous performance and system protection.
Maintenance-Friendly Design
Designed for safety, efficiency, and ease of maintenance, FlexForce is a powerful upgrade to any machining environment. Flexforce is made with the end-user in mind to ensure ease of use and compatibility with the machining application. Convenient maintenance features such as an easy-to-see oil level gauge and a drain chute that directs all the oil into a pan ensure a clean oil change service. See how FlexForce can complement your CNC machine tool coolant FlexFiltration system.
Product Information
- 30 gallon internal coolant reservoir to continuously feed pump
- Hydracell diaphragm pump for steady pressure
- Automatic change over bag filters for continuous operation
- “Bag Filter Full” sensor and light indication
- Automatic pressure regulator and dump valve
- Electronic sensors to monitor critical levels for lights-out operation
- Fail-safes and pressure regulation greatly reduce or eliminate system damage
- Easy oil change chute
- easy-to-see oil level gauge
- Includes mating connector with 5′ flying leads
Additional Benefits
- Optimized machining speeds and feeds for increased productivity
- Improved tool lubrication and heat dissipation in the cutting zone
- Improved surface finishes and part accuracy
- Improved chip evacuation and chip breakage control
- Reduced tool wear
- Safe and efficient operation
FlexForce is available in standard sizes and models based on modular components.
For applications requiring specifications outside of a standard system, we offer custom engineered FlexFiltration solutions with FlexForce high pressure.
Contact one of our filtration experts for more information.
- Chiller
- 500 or 1000 PSI – fixed pressure
- 500 or 1000 PSI – variable flow (2-8 gpm)
- 10-micron bag filtration standard. 5 or 25 micron available upon request
- Easily accessible single or duplex bag filters
- Install service available upon request
