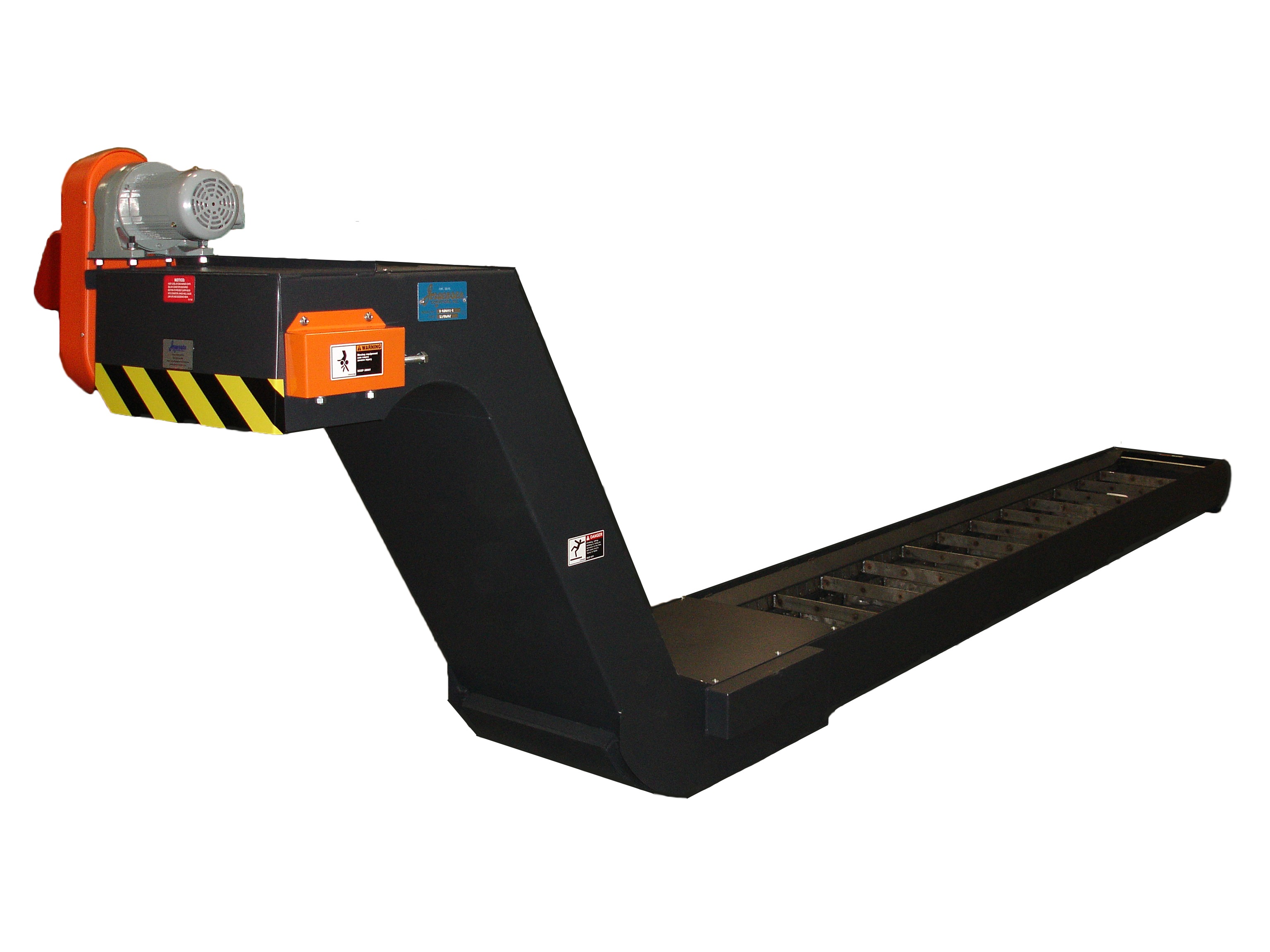

MagDrag Magnetic chip drag conveyor

Magnetic Drag Conveyor for Ferrous Metals

The Mag-Drag® is a combination of magnetic and drag chain style conveyors. It’s more effective at ferrous fine chip removal than traditional hinged belt or drag flight conveyors in high coolant flow rate applications.

Powerful magnets, located underneath the conveyor’s load and lower curve sections, attract and hold chips. Then, metal drag-flight cleats scrape chips and sludge up the incline to the discharge. Magnetic conveyors are custom engineered to meet specifications for length and width to ensure a proper fit to most CNC metal cutting machines. Each magnetic drag conveyor has a unique pattern of individually placed magnets to optimize carryout.

The magnetic separation of chips from coolant results in cleaner coolant improving machining accuracy and prolonging tool life. Cleaner coolant also reduces the costs of coolant replacement and disposal.

The Mag-Drag® comes in drag chain sizes in 1.5″ and 2.5″ pitch with stainless steel cleats.

  • More effective ferrous fine chip removal than traditional hinged belt or drag flight conveyors in higher coolant flow rate applications: Magnets assist in drawing fine chips to conveyor bottom for removal
  • A combination of magnetic and drag style conveyors
  • Complete electronics / controls (upon request)
  • Unique pattern of individually-placed magnets to optimize carryout
  • AR400 wear resistant steel used in all wear areas of conveyor
  • Reduced migration of fine chips to the clean tank results in less downtime for tank cleaning
  • Cleaner coolant improves machining accuracy and prolongs tool life
  • Cleaner coolant reduces the costs of coolant replacement and disposal
  • Cleaner coolant delivered to downstream bag or cartridge filters means less replacement of consumable filter element
  • Stainless steel, cleated drag chain sizes  1.5” and  2.5” pitch
  • Designed with durable  AR400 abrasion resistant steel and through-hardened components in all high-wear areas of the conveyor
  • Reduced buildup of fine chips in clean tank and less downtime for cleaning
  • Cleaner coolant improves machining accuracy and prolongs tool life
  • Cleaner coolant reduces the costs of coolant replacement and disposal
  • May handle high flow applications, dependent on size
  • 2 types of design configurations
  • Drag chain sizes in 1.5″ and 2.5″ pitch with stainless steel cleats
  • Integrated Tank
    • PermaClean – maintenance free coolant tank
    • FlexForce – high pressure coolant system
    • Pumps/ plumbing/coolant transfer
    • Downstream Filtration
    • Tramp oil skimmers
  • Complete electricals/controls

Recent MagDrag® Conveyor built for customers.
